MEAM.Design - MAEVARM - mMicroSD


The mMicroSD allows developers to read and write to a FAT32-formatted SD card over the mBus. Get the files here:

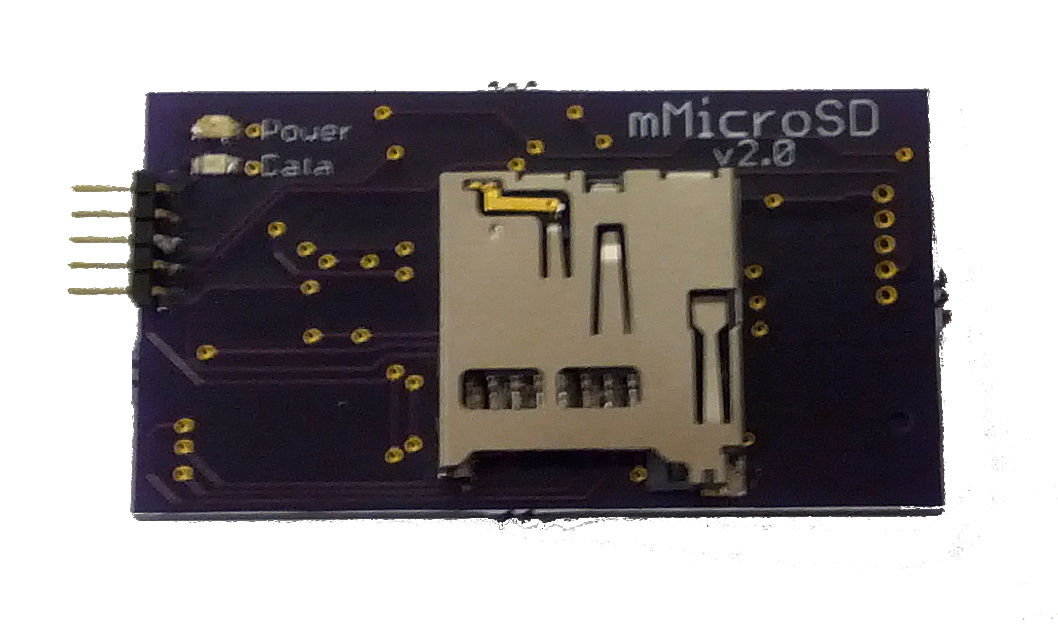

As of version 2.0, the mMicroSD peripheral can be directly plugged into the mBus header of both the M2 and M4.

Sample Program

A sample program for the M2, which provides a serial interface to view and edit files and directories, is available here:

User Functions

Note: Long file names are NOT supported!
8.3 characters for files and 8 characters for directories MAX!

Startup and shutdown:

bool m_sd_init (void)
Mount the microSD card's FAT32 filesystem.

bool m_sd_shutdown (void)
Commit any pending writes and unmount the filesystem.

bool m_sd_commit (void)
Commit any pending writes (useful if you don't know when the system might be powered off)

File and directory information:

bool m_sd_get_size (const char *name, uint32_t *size)
Get the size of a file in the current directory.

bool m_sd_object_exists (const char *name, bool *is_directory)
Search the current directory. If the target is found, *is_directory will be set accordingly.

bool m_sd_get_dir_entry_first (char name[13], uint32_t *size, bool *is_directory)
bool m_sd_get_dir_entry_next (char name[13], uint32_t *size, bool *is_directory)
Iterate through the current directory, reading the names of its objects.
Returns false when the end of the directory has been reached.
If you don't need certain information, you can set those parameters to NULL.

Directory traversal and modification:

bool m_sd_push (const char *name)
Enter the directory with the given name.

bool m_sd_pop (void)
Go up one level in the directory path.

bool m_sd_mkdir (const char *name)
Create a subdirectory in the current directory.

bool m_sd_rmdir (const char *name)
Remove an empty subdirectory from the current directory.

bool m_sd_delete (const char *name)
Delete a file from the current directory. If you delete an open file, the file will be closed first.

File access and modification:

bool m_sd_open_file (const char *name, const open_option action, uint8_t *file_id)
Open a file in the current directory. Actions are:

  • READ_FILE: Open an existing file as read-only
  • APPEND_FILE: Open an existing file as read-write and seek to the end
  • CREATE_FILE: Create a file, deleting any previously existing file

You cannot open a file that is already opened elsewhere

bool m_sd_close_file (uint8_t file_id)
Close a file. Does nothing if the file is not open.

bool m_sd_seek (uint8_t file_id, uint32_t offset)
Seek to a location within an opened file. An offset of FILE_END_POS will seek to the end of the file.

bool m_sd_get_seek_pos (uint8_t file_id, uint32_t *offset)
Get the seek position in the current file.

bool m_sd_read_file (uint8_t file_id, uint32_t length, uint8_t *buffer)
Read from the current location in the file. Updates the seek position.
If the length of the read would go beyond the end of the file, an error is returned and nothing is read.

bool m_sd_write_file (uint8_t file_id, uint32_t length, uint8_t *buffer)
Write to the current location in the file. Updates the seek position.

Error Codes


Every mMicroSD function call returns a bool to indicate whether it was successful (true for success, false for failure).
If a function fails, the reason why it failed will be stored in m_sd_error_code, and can be one of these values:

  1. ERROR_NONE: No error

Card-level errors:

  1. ERROR_RESET: Error resetting the card
  2. ERROR_ENABLE_CRC: Error enabling CRC checksums
  3. ERROR_INIT: Error initializing the card
  4. ERROR_BLOCK_LENGTH: Error setting the block length
  5. ERROR_CARD_UNINIT: The card has not been initialized yet
  6. ERROR_NULL_BUFFER: The read/write function was given a null buffer
  7. ERROR_TOO_FAR: Tried to read or write beyond the block length (512 bytes)
  8. ERROR_TIMEOUT: Timeout when reading/writing to the card
  9. ERROR_CRC: Too many CRC errors when reading/writing
  10. ERROR_CACHE_FAILURE: An error occurred in the block caching system
  11. ERROR_UNKNOWN: Some other error

Filesystem-level errors:

  1. ERROR_MBR: Error reading MBR
  2. ERROR_NO_FAT32: No FAT32 filesystem found in the MBR
  3. ERROR_FAT32_VOLUME_ID: Unexpected values in the FAT32 volume ID
  4. ERROR_FAT32_INIT: FAT32 filesystem could not be mounted
  5. ERROR_FAT32_CLUSTER_LOOKUP: Bad value encountered when looking up a FAT32 entry
  6. ERROR_FAT32_AT_ROOT: Tried to pop directory when in the root directory
  7. ERROR_FAT32_NOT_FOUND: The file or directory was not found
  8. ERROR_FAT32_NOT_DIR: Tried to call push on a file
  9. ERROR_FAT32_END_OF_DIR: Tried to read a directory entry after reaching the end of the directory
  10. ERROR_FAT32_NOT_FILE: Tried to open a directory as a file
  11. ERROR_FAT32_NOT_OPEN: Tried a read/write/seek operation on a file that isn't open
  12. ERROR_FAT32_TOO_FAR: Tried to read/seek beyond the file's length
  13. ERROR_FAT32_ALREADY_EXISTS: Tried to create a file or directory that already exists
  14. ERROR_FAT32_FILE_READ_ONLY: Tried to write to a file that was opened read-only
  15. ERROR_FAT32_FULL: No free space left on the card
  16. ERROR_FAT32_INVALID_NAME: Passed a function a bad file or directory name (too long, invalid characters...)
  17. ERROR_FAT32_NOT_EMPTY: Tried to call rmdir on an non-empty directory
  18. ERROR_FAT32_ALREADY_OPEN: Tried to open a file that is already open
  19. ERROR_FAT32_TOO_MANY_FILES: Maximum number of files already open
  20. ERROR_FAT32_BAD_FILE_ID: Tried to use a file id higher than the maximum allowed

mBus-level errors:

  1. ERROR_I2C_COMMAND: Error communicating with the mMicroSD peripheral over I2C
  2. ERROR_I2C_RESPONSE_TIMEOUT: Timed out waiting for a response from the mMicroSD peripheral
  3. ERROR_I2C_MESSAGE_TOO_LONG: Tried to read or write too much data at a time

The code and schematic for the mMicroSD peripheral itself is here:
