The following information will be useful should you wish to develop your own peripheral to operate on the mBUS.

Header Pinout

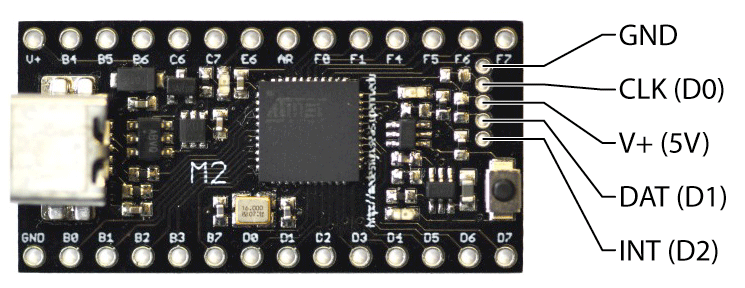

When viewed from the top of the m2, the mBUS header has the following pinout

Address Selection

You need to be careful when selecting the device address. Here's a table of the existing units:

mRF Nordic wireless link 0x28
mWii IR blob tracker 0x58
mIMU 9-DOF IMU 0x69
mPort 16 Pin I/O Expansion Board 0x20-0x27
mMicroSD microSD card reader/writer 0x5D

Put the mBUS header at:

.0507, .575

on the other side, .111 in from the right edge of the board
